FLEX-Suctionmat
The novel FLEX suction mat for all common vacuum box systems
Our newly developed suction mat made of EPDM cellular rubber gets a special treatment and can be customized to match your needs. Hardness and impermeability are adjusted to your plant requirements — this individual adjustment reduces the energy costs of your system.
Advantages
Higher Wear Resistance
Outperforms conventional suction mats in wear resistance at 0.7 kN/m (NFR 99211-80). Designed for demanding continuous operation.
Higher Impermeability
Semi-closed cell EPDM structure for maximum vacuum holding force. Lower energy costs through denser foams.
Residue-Free Replacement

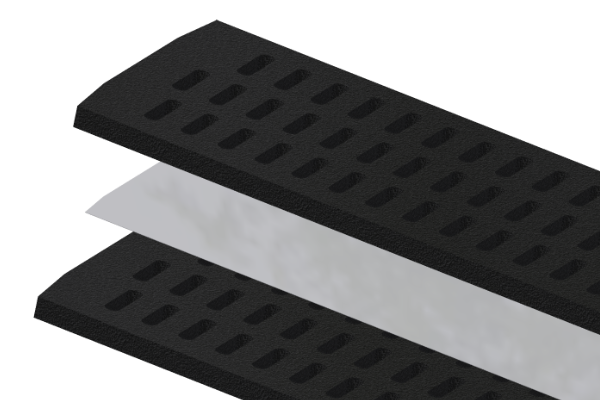

Easy, quick and residue-free removal due to a special adhesive technique. Sandwich construction with adhesive fabric film.
Cut to Size On-Site
Suction mats are manufactured in 2,000 mm long strips and can be cut to size and pieced together on-site — zero waste.
Fully Customizable
Hardness and impermeability individually adjusted. Available thicknesses from 3 to 100 mm. One-sided, two-sided or non-adhesive.
Lower Energy Costs
Denser foams lead to lower energy consumption and higher availability of your system. Maximum compression up to 90%.
Technical Specifications
Gallery
